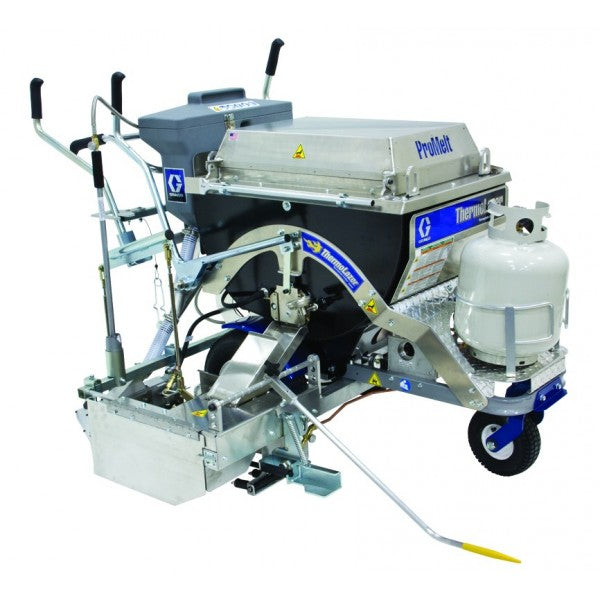

Graco ThermoLazer ProMelt Thermoplastic Handliner with 5-inch (12 cm) SmartDie II

Graco ThermoLazer ProMelt Thermoplastic Handliner with 5-inch (12 cm) SmartDie II - 24R762

The Graco ThermoLazer ProMelt Thermoplastic Handliner with 5-inch SmartDie II provides precise and durable thermoplastic striping for curbs, parking lots, and detailed pavement markings. Equipped with SmartDie II technology, it ensures smooth, consistent lines and reliable application for professional-quality results in various marking tasks.

Product Literature
📊📘344507EN-C – ThermoLazer Product Brochure

Includes

• ThermoLazer ProMelt System
• SmartDie II Box - 4 Inch (10 cm)
• ProMelt No Heat Sprayer
• Graco Warranty

Materials

• All types of Alkyd
• All types of Hydrocarbon
• All types of Glass Beads

Specifications

• Material Capacity: 300 lbs (136 kg)
• Available Dies: 3 in (8 cm), 4 in (10 cm), 5 in (12 cm), 6 in (15 cm), 7 in (18 cm), 8 in (20 cm), 9 in (22.5 cm), 10 in (26 cm), 12 in (30 cm), 4x4x4 in (10x10x10 cm), 4x3x4 in (10x8x10 cm), 3x3x3 in (8x8x8 cm)
• Fuel Source: LP Gas (LP tank not included)
• Main Burner: 100,000 BTU
• Melt Time: 1 hour
• Die Heater: Infared Technology
• Glass Bead Reservoir Capacity: 90 lbs (40 kg)

Features

• QuadMelt System - Four chamber system melts 300 lbs in 1 hour.
• ControlFlow System - Precise material flow with lever control.
• Glass Bead Hopper - Holds over 90 lbs (40 kg) of glass beads.
• SmartDie II System - Now use with or without heat for all weather conditions. Floats with the surface.
• EasyGlide System - First thermoplastic line striper with dual rear wheels and Fat Track Front Swivel for smooth LineLazer-like handling.
• SmoothRide Tires - High-load pneumatic tires provide excellent maneuverability and less rolling resistence.
• Optional Double-Bead Drop System Kit - Installs in minutes for superior reflectivity.
