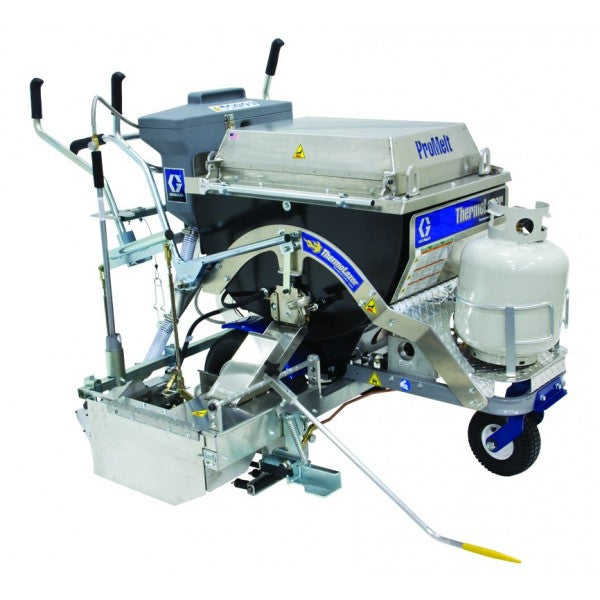

Graco ThermoLazer ProMelt Thermoplastic Handliner with 3-inch (8 cm) SmartDie II

Graco ThermoLazer ProMelt Thermoplastic Handliner with 3-inch (8 cm) SmartDie II - 24R761

Product Literature
📊📘344507EN-C – ThermoLazer Product Brochure

Includes

• ThermoLazer ProMelt System
• SmartDie II Box - 4 Inch (10 cm)
• ProMelt No Heat Sprayer
• Graco Warranty

Materials

• All types of Alkyd
• All types of Hydrocarbon
• All types of Glass Beads

Specifications

• Material Capacity: 300 lbs (136 kg)
• Available Dies: 3 in (8 cm), 4 in (10 cm), 5 in (12 cm), 6 in (15 cm), 7 in (18 cm), 8 in (20 cm), 9 in (22.5 cm), 10 in (26 cm), 12 in (30 cm), 4x4x4 in (10x10x10 cm), 4x3x4 in (10x8x10 cm), 3x3x3 in (8x8x8 cm)
• Fuel Source: LP Gas (LP tank not included)
• Main Burner: 100,000 BTU
• Melt Time: 1 hour
• Die Heater: Infared Technology
• Glass Bead Reservoir Capacity: 90 lbs (40 kg)

Features

• QuadMelt System - Four chamber system melts 300 lbs in 1 hour.
• ControlFlow System - Precise material flow with lever control.
• Glass Bead Hopper - Holds over 90 lbs (40 kg) of glass beads.
• SmartDie II System - Now use with or without heat for all weather conditions. Floats with the surface.
• EasyGlide System - First thermoplastic line striper with dual rear wheels and Fat Track Front Swivel for smooth LineLazer-like handling.
• SmoothRide Tires - High-load pneumatic tires provide excellent maneuverability and less rolling resistence.
• Optional Double-Bead Drop System Kit - Installs in minutes for superior reflectivity.
