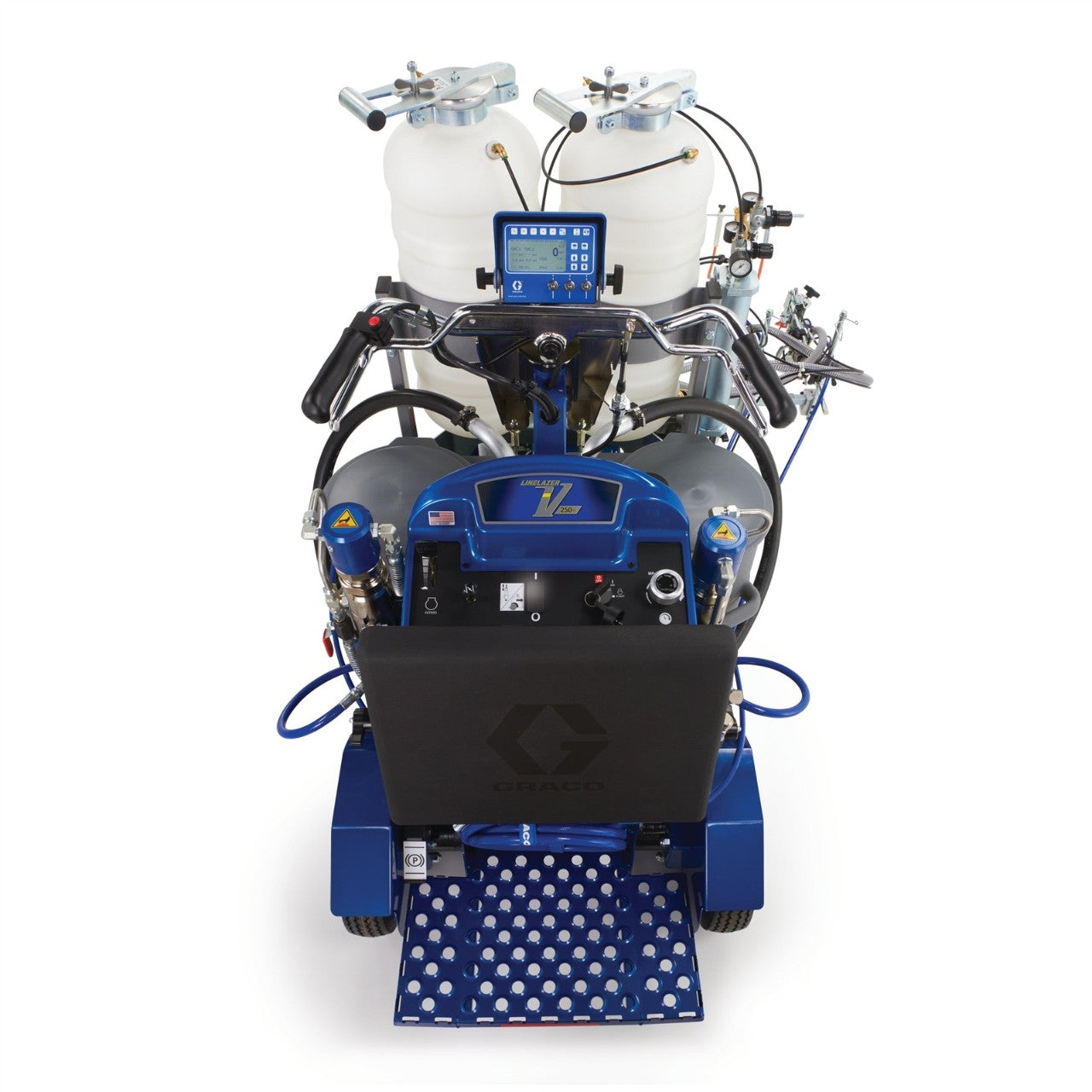

The Graco LineLazer V 250DC HP Reflective Series provides high-production dual color striping and reflective bead application capability and is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-color stripes with reflective beads.
The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.
Product Literature
📊📘344385EN-M – LineLazer Product Brochure
Product Manuals
🔧📕3A3393EN-F – LineLazer V 250SPS and 250DC Self-Propelled Line Striper, Operation
🔧📕3A3394EN-L – LineLazer V 250SPS and 250DC Self-Propelled Line Striper, Repair/Parts
🔧📕3A3428EN-B – LineLazer V 3900, 5900 Airless Line Stripers, Operation
🔧📕311254EN-P – Silver and Flex Plus Airless Spray Guns, Instructions
🔧📕309277EN-ZA – Displacement Pump, Instruction-Parts List
🔧📕3A5189EN-A – Fuse Installation for LineLazer V 250SPS and 250DC Self-Propelled Line Striper, Instruction
Product Features
Pressurized EZ Bead System
- Superior Bead Application Performance
- Ensures proper bead flow and paint penetration
- Dual bead tanks hold up to 120 lbs each
Dual High-Efficiency Hydraulic Motors
- Uninterrupted Performance
- No-Stall design
Dual Endurance Chromex Pumps
- Precise Material Flow
- Consistency with a wide range of striping materials
Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
Remote Mount Control Box
- Striping Information At-A-Glance
- Simple to use and easy to see in all conditions
Dual 15-Gallon Paint Hoppers
- Less Refilling
- Simultaneously spray two colors and refill less often
Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
Electric Start
- Fast starting
EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
Additional Features
- Front or Rear Gun Mount
- Self-Centering Front Wheel
- Easy Handlebar Adjustment
- High-Capacity Cooling System
- Easy Out Pump Filter
