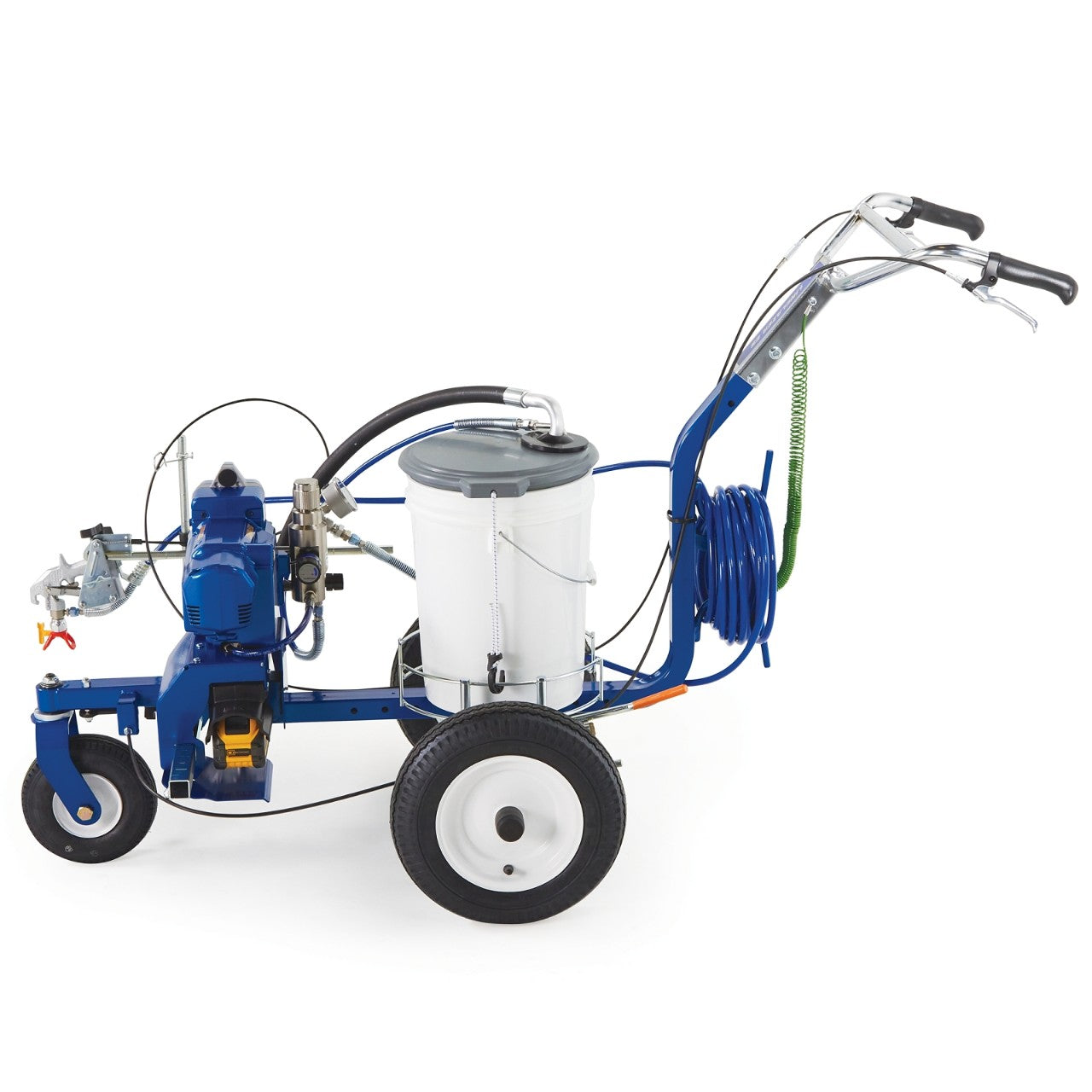

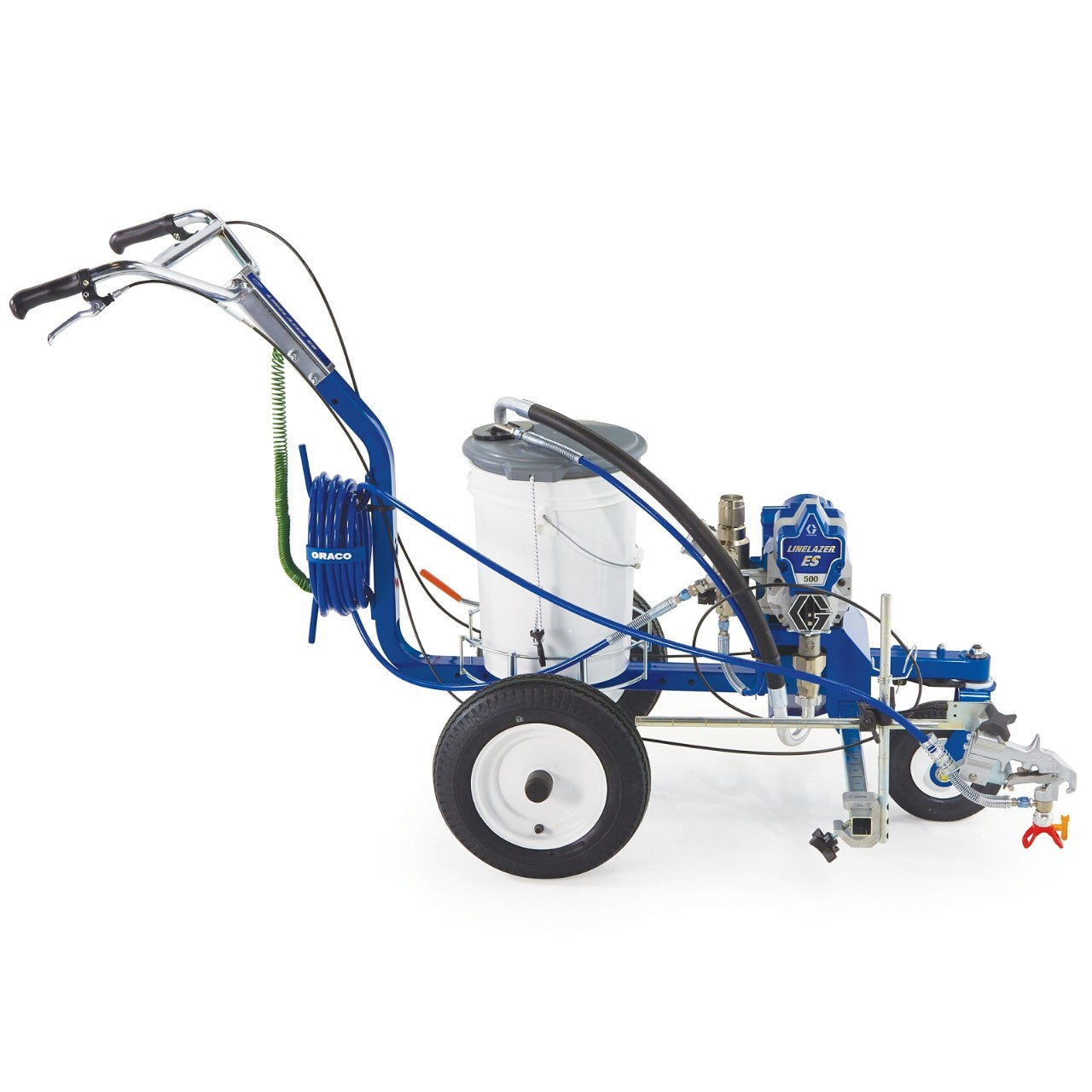

The LineLazer ES 500 is a fully-capable line striper for those small to medium-sized re-stripe jobs—while introducing the benefits of battery-powered technology.
All fluid passageways are upgraded for use with fast-dry, waterborne traffic paints—hose, gun and fittings.
• NO ENGINE NOISE, VIBRATION OR FUMES
Benefits of Battery Power Over a Gas Engine
• Reduce user fatigue while delivering perfect lines
• Improved jobsite conditions
• EXTENDED RUNTIME

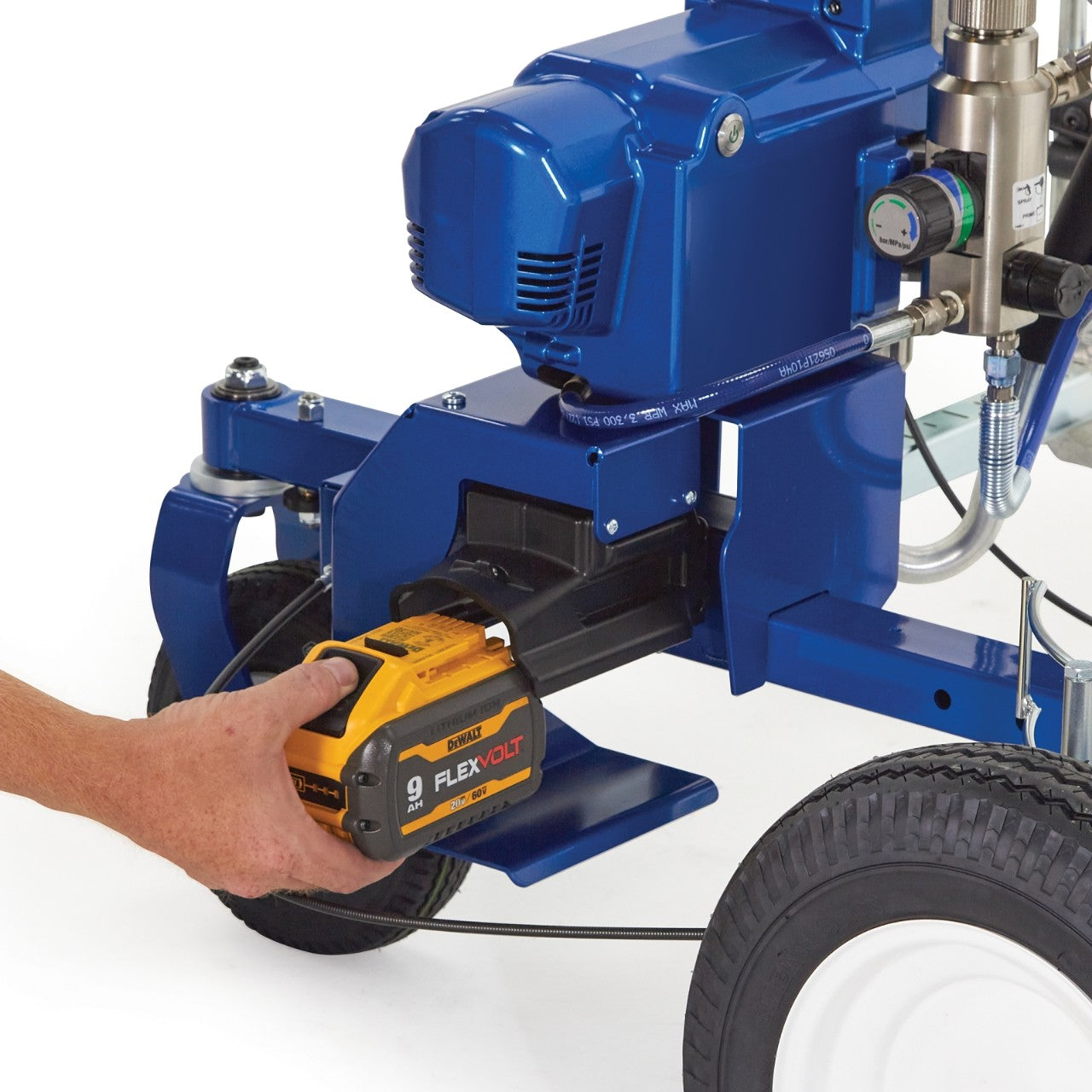

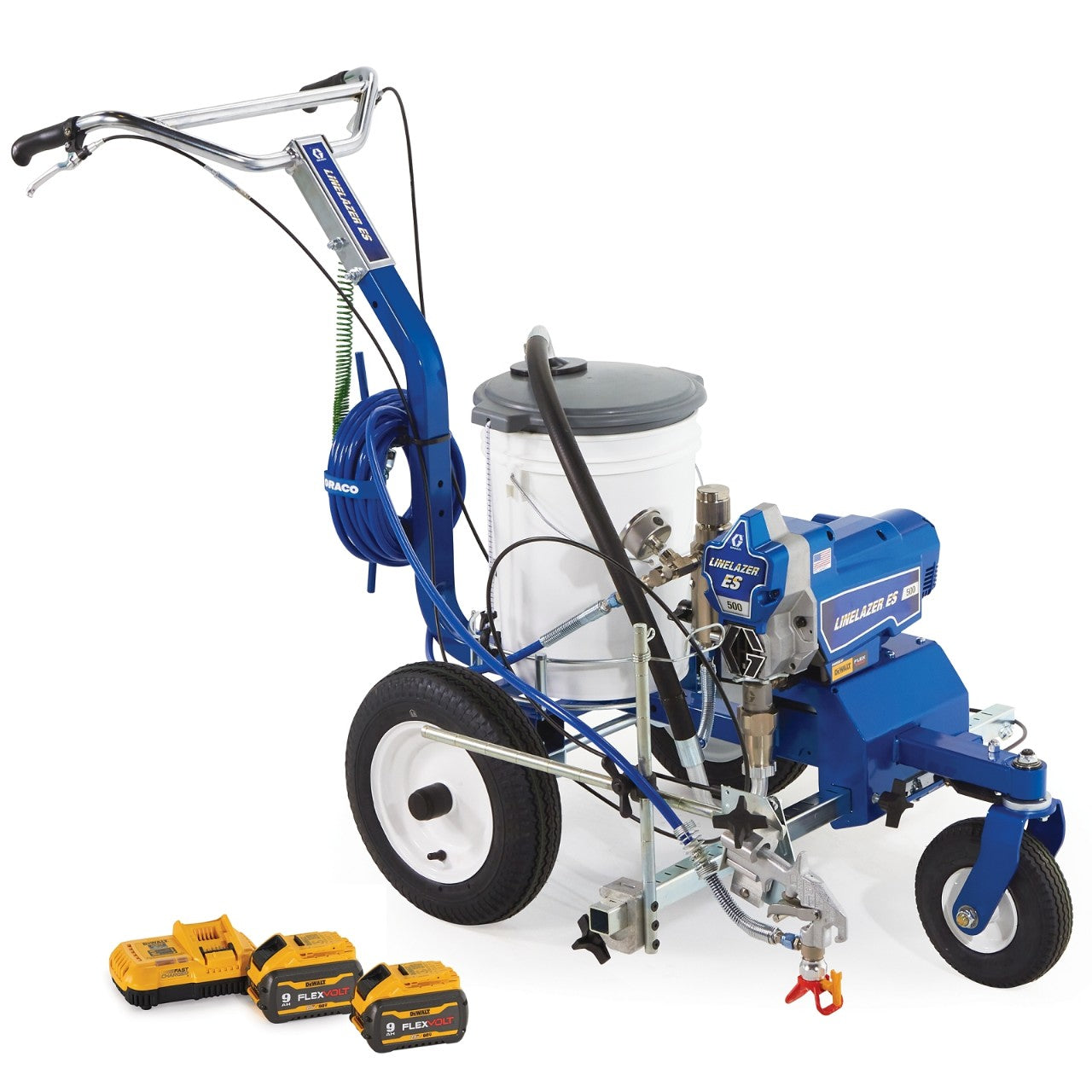

DEWALT® 9.0 Ah FlexVolt® Battery
• Spray up to 10 gallons with two fully charged DEWALT FlexVolt batteries
• Capable of completing 200+ parking lot stalls
• FAST CHARGING
DEWALT Fan-Cooled Fast Charger
• Quickly charges battery in under 60 minutes
• Allows contractors to finish jobs without interruptions
• EASY GUN ADJUSTMENTS
EasyMark Gun Adjustment System
• Perfect gun setup every time with easy-to-use Guide Mark System
• IMPROVED TRACKING AND LINE QUALITY
Proven Frame Design
• Durable, steel construction
• Accepts 15-gallon hopper and EZ Bead System
• EASIER MANEUVERABILITY

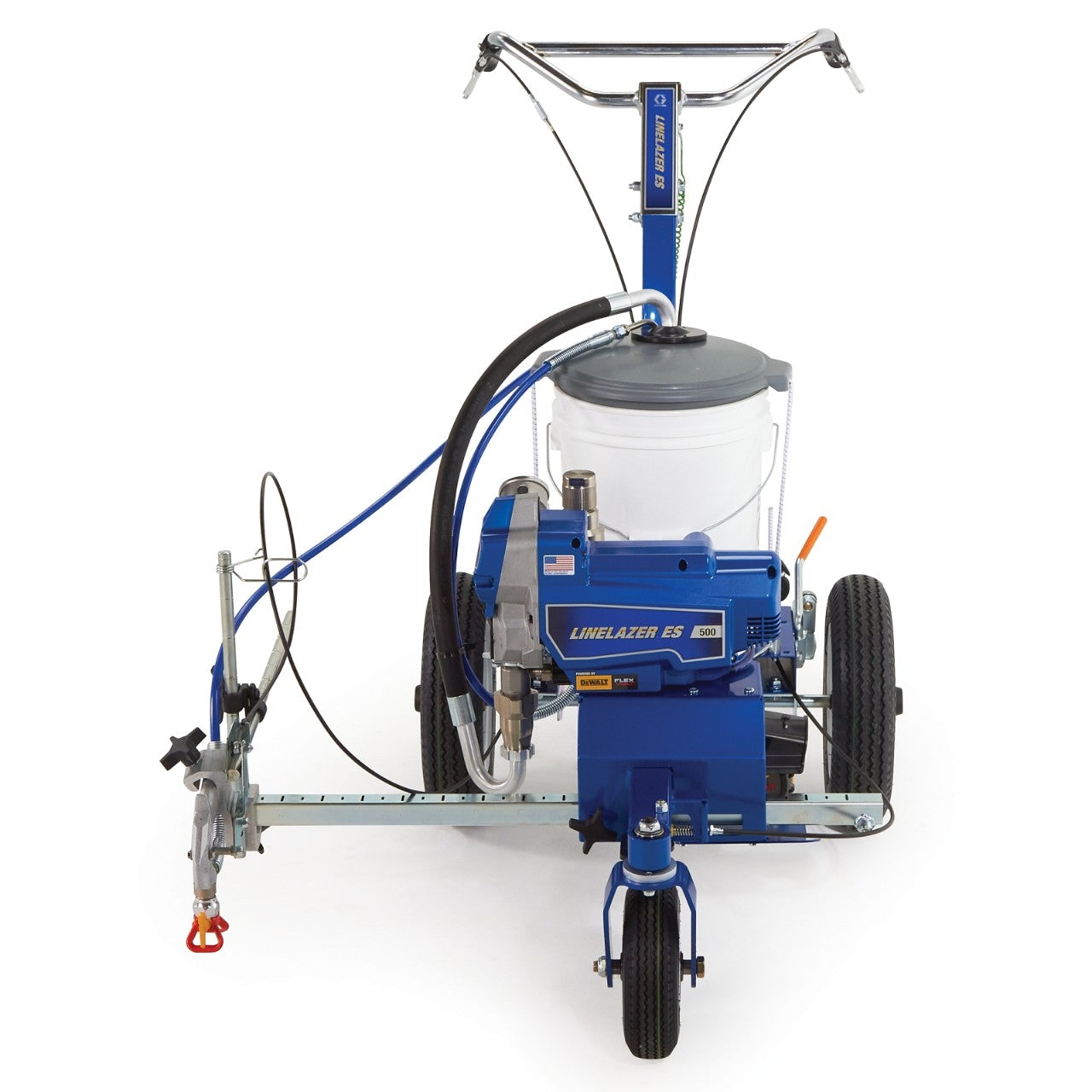

Front Swivel Wheel
• Ability to stripe right up to the curb
• Makes easy work of hard-to-do curves
• Years of dependable operation with tapered locking pin design
• THE LONGEST LASTING DRIVE

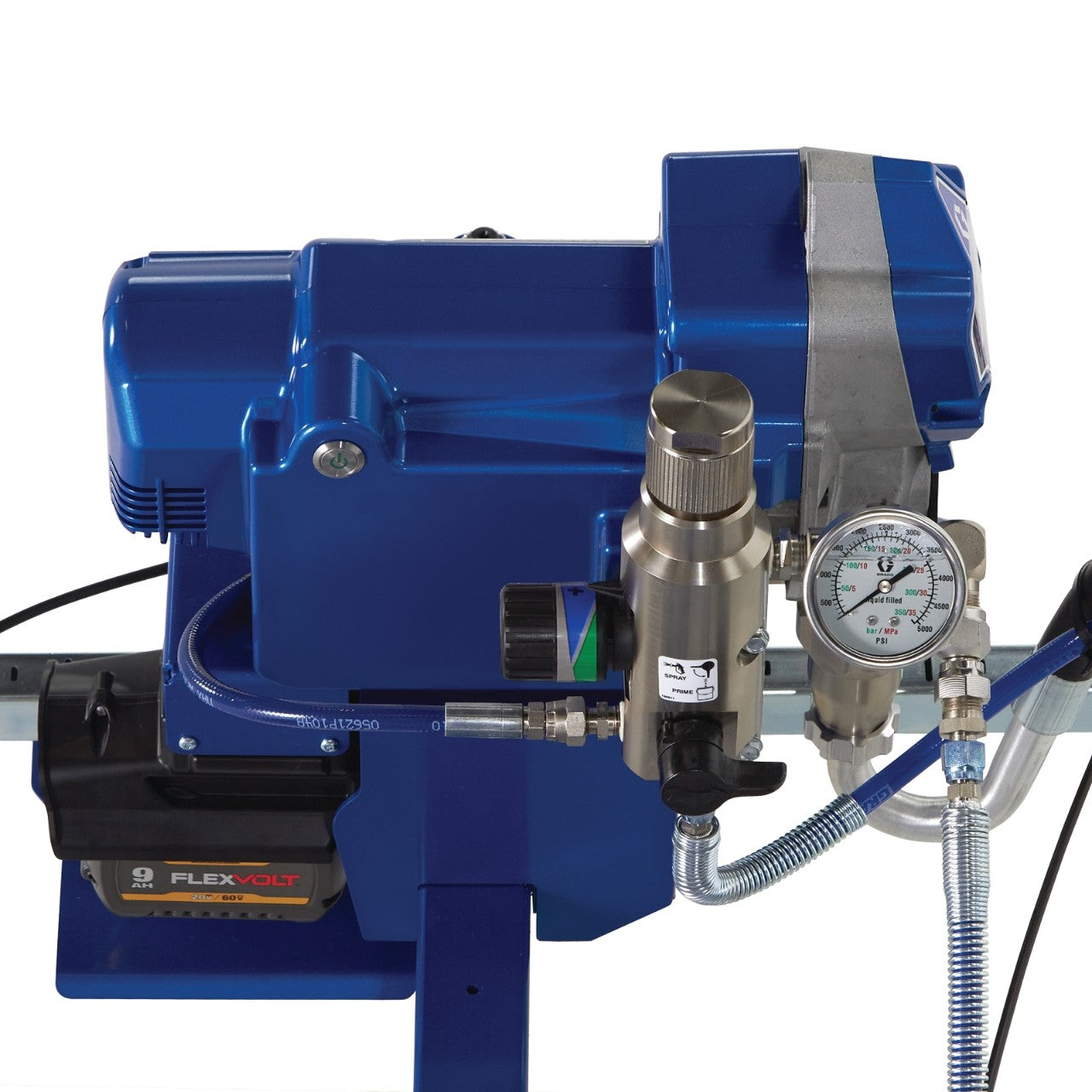

Advantage Drive
• Hardened steel gears provide extremely quiet operation and a lifetime warranty
• DURABLE PUMP
Endurance Pump
• Last 2X longer than the next leading brand
• Long life V-Max Blue Packings, Chromex rod, and hardened stainless steel cylinder
• Faster cleaning with the QuikAccess intake valve
• ELIMINATE COSTLY DOWNTIME
ProConnect Pump Replacement
• Swap pump in minutes—no tools, pins or parts to lose
• EASY MAINTENANCE AND LESS CLOGGING
Easy Out Filter
• Exclusive inside-out filtering design reduces tip clogs
